GEOS I43_01 Upscaling

This study investigates micromorphic upscaling of a heterogeneous material composed of grains and a binder, specifically the I43.01 specimen. The DNS is an explicit material point method (MPM) model of a dynamic experimental conducted in GEOS. The results of this DNS are homogenized using the Micromorphic Filter for a variety of filtering domains.

DNS files are copied from the PetaLibrary into a local directory “peta_data_copy” using the following command. This command usually only needs to be used once. Files are copied using the secure copy protocal (SCP). A user will be asked for their identikey, password, and two factor authentication (2FA).

$ scons --peta-data-copy

The analysis is executed in individual stages by the GEOS_I43_01_sim38 SConscript. First, the existing DNS results are processed into the required XDMF file format for the Micromorphic Filter using the following command:

$ scons GEOS_I43_01_sim38

Next the homogenization is performed. Macroscale meshes with 1, 24, 48, 264, 768, 1680, and 6912 are considered for the default configuration. These jobs may be run at the same time using the –jobs=7 command line argument.

$ scons GEOS_I43_01_sim38 --filter

DNS

A displacement of about 0.2 mm is applied over 121 microseconds. The output files of this DNS are very large and difficult to visualize on a personal machine. The following figures show the extracted point fields input to the Micromorphic Filter containing the raw DNS data. Figure 45 shows the force vs displacement and final displacement field of the DNS. Orange markers in Figure 45 denote the frames chosen for upscaling. The force-displacement indicates that the specimen has started to fail by the end of the simulation. The displacement field also shows that the top of the cylinder is not perfectly which may be a byproduct of the CT segmentation and DNS geometry generation.

(a) Force vs displacement with markers denoting frames chosen for upscaling

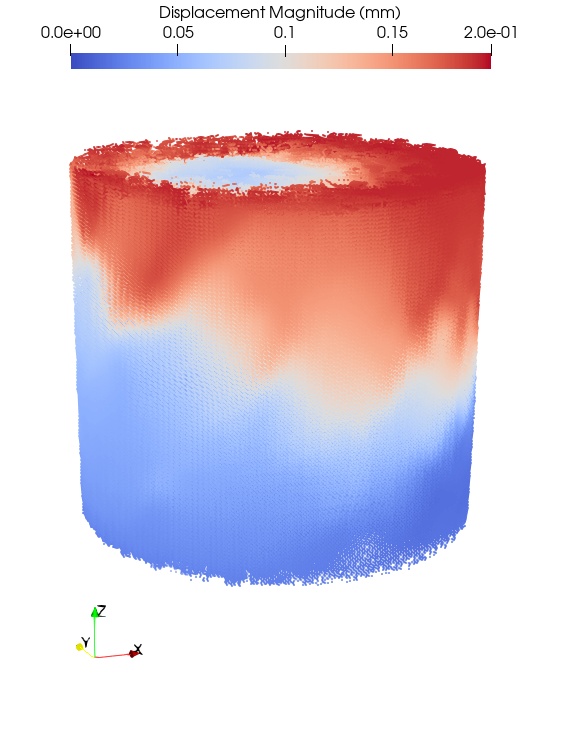

(b) Displacement field

Fig. 45 GEOS I43.01 simulation force vs displacement

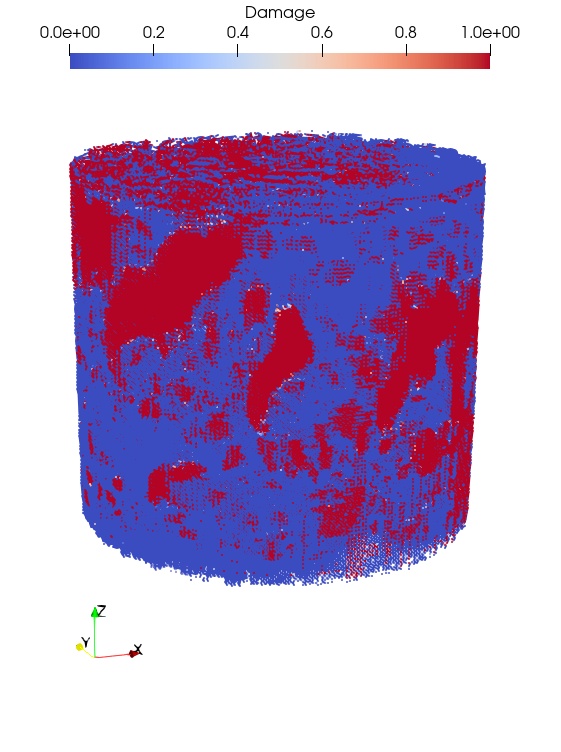

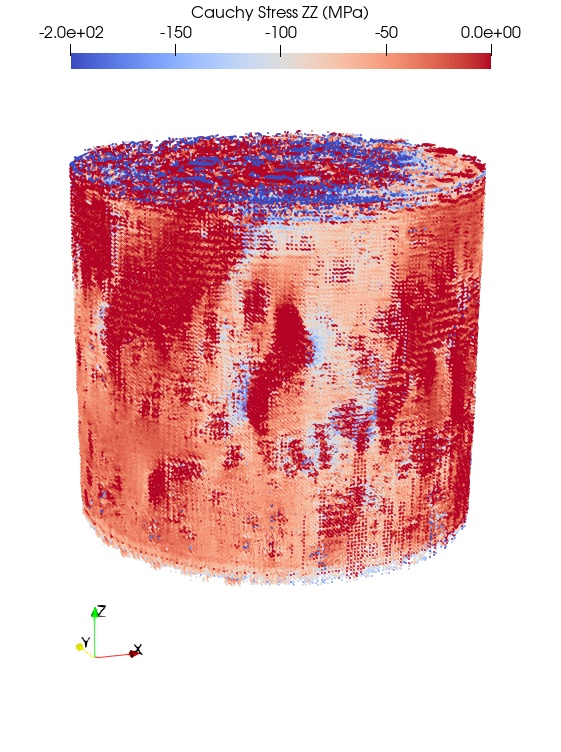

The Cauchy stress (ZZ component) and scalar damage field is plotted in Figure 46 for the final time step. It is clear that there is a high concentration of stress on the top of the cylinder. The damage field shows regions, resembling grains, that have reached a full state of damage. These same regions of high damage correspond to regions where Cauchy stress is zero.

(a) Force vs displacement with markers denoting frames chosen for upscaling

(b) Displacement field

Fig. 46 GEOS I43.01 simulation force vs displacement

Upscaling

DNS results are homogenized using the Micromorphic Filter for 1, 24, 48, 264, 768, 1680, and 6912 filter domains. Only the results for the 6912 element macroscale are presented. Figure 47 shows the homogenized displacement, stress, and damage fields for the final time step. These results generally agree with the DNS fields shown in Figures 45 and 46, except here the DNS results are clearly “smeared out.”

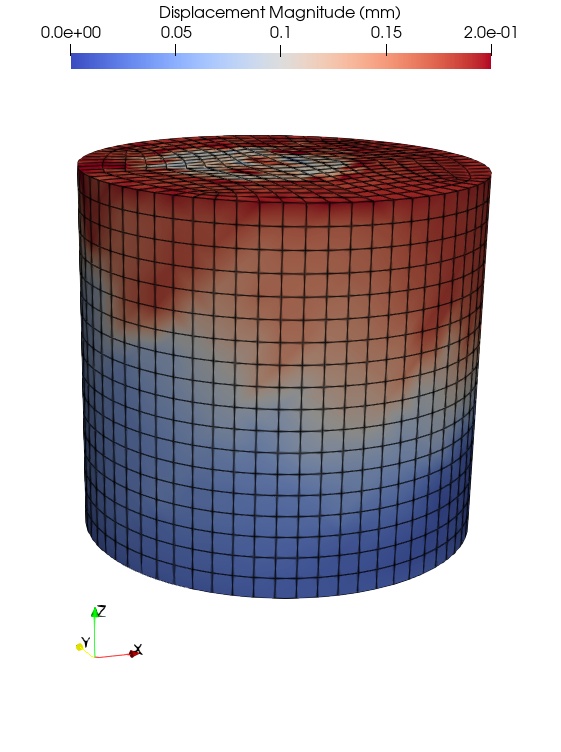

(a) Homogenized displacement field

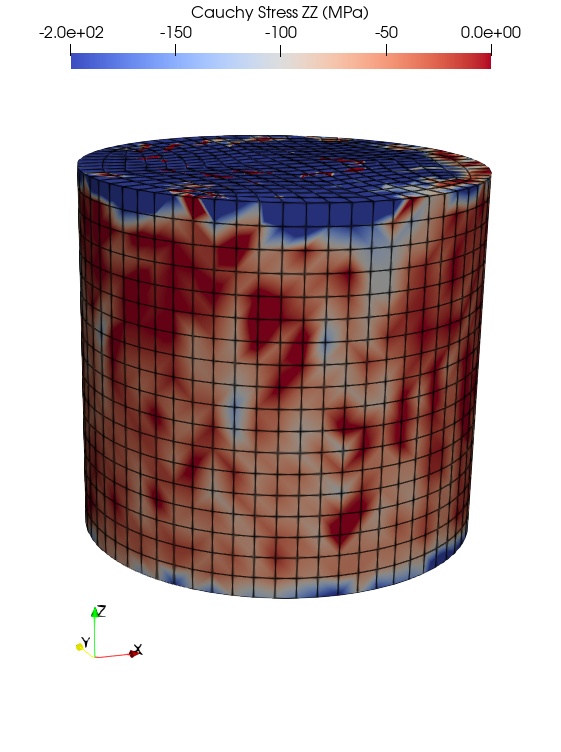

(b) Homogenized Cauchy stress ZZ

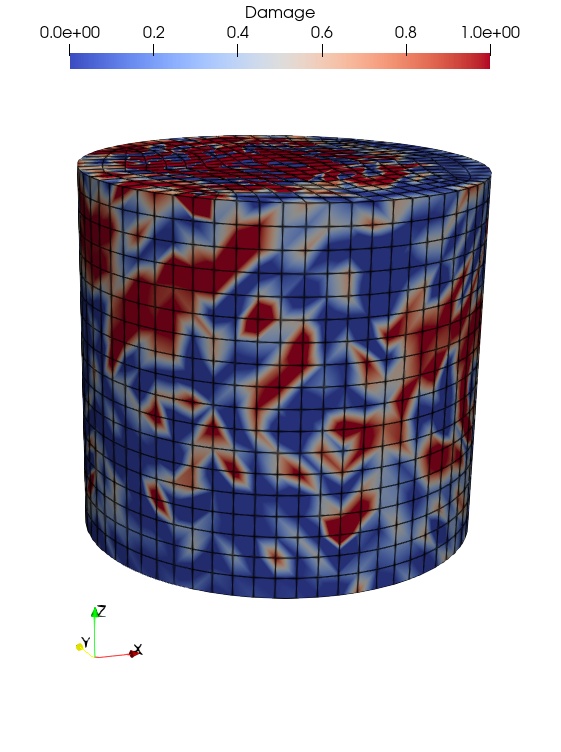

(c) Homogenized damage

Fig. 47 Micromorphic Filter results for 6912 domains
